Prince Manufacturing designs a variety of custom designed cylinders to solve special problems and meet varying customer needs. Present your particular application to Prince, along with your special concerns and operating parameters. Once the requirements have been discussed a solution can be recommended.

Engine cylinders

We supply a wide range of engine cylinders with the following features:

  • Carbon dioxide / nitrogen application
  • Designed using 3D parametric solid modeling software

Outrigger cylinders

We supply a range of outrigger cylinders with the following features:

  • 6in bore, 30in stroke, 2,500psi
  • Designed using 3D parametric solid modeling software

Swing cylinders

We supply a range of swing cylinders with the following features:

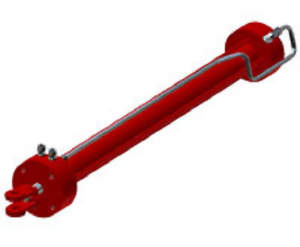

Engine Cylinder

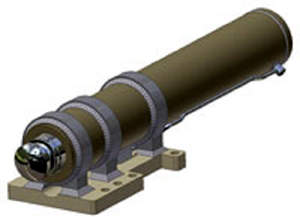

Outrigger Cylinder
Swing Cylinder

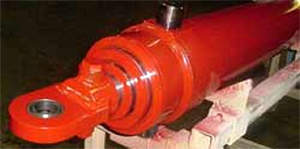

Custom Telescopic

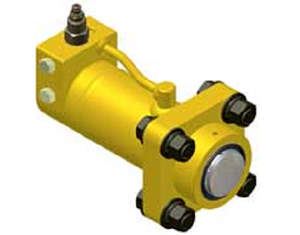

Tension Cylinder
  • Double cushioned
  • Designed using 3D parametric solid modeling software

Custom telescopic cylinders

We also supply a range of custom telescopic cylinders, with features including:

  • Five-stage telescopic
  • Rod ported
  • Bore up to 9.75in, 288in stroke, 3,000psi
  • No drift design

Tension cylinders

We supply a range of tension cylinders with the following features:

  • 2.5in bore, 2.06in stroke, 5,900PSI extend, 3,000PSI retract
  • Designed using 3D parametric solid modeling software

Shear cylinders

We supply a range of shear cylinders with features including:

  • Shear cylinder for demolition industry
  • 16in bore, 39in stroke, 5,000psi

About Prince Manufacturing

Prince Manufacturing Corporation headquarters is located in North Sioux City, South Dakota in the Gateway Industrial Park, and serves as the corporation’s center point. The corporate offices here include the executive management team, as well as the accounting, sales and engineering departments. With five divisions in three states, OEM and Distributor accounts worldwide can be assured that Prince Manufacturing Corporation will be providing high quality hydraulic cylinders, valves, pumps and accessory components well into the future.

The Sioux City, Iowa plant, a 100,000ft² building with a 40ft high roof, sits on 27 acres of ground allowing for easy expansion in the future. Custom and standard design hydraulic cylinders ranging from two and a half to seven inch bore diameter and strokes up to 14ft are manufactured at this facility.

With over 375,000 square feet of manufacturing in five plants Prince has the diversity to meet your cylinder needs.

The employees are credited with much of the plant’s success. With an average of over 14 years of continuous service, these employees are active in many continuous improvement work groups that greatly enhance the manufacturing process and efficiencies.
