London Gateway Port Terminal, United Kingdom




Key Data


London Gateway

London Gateway Port Terminal is an automated deep-sea container port being developed by DP World on the north bank of the River Thames in Essex.

The terminal is being constructed as part of the London Gateway Project, which also includes the construction of Europe's largest logistics park adjacent to the terminal. DP World acquired the London Gateway Plan in 2006 from P&O for £3.92bn ($7.3bn).

The two facilities are being built on the site of a former Shell oil refinery in Essex. Construction work on the £1.5bn ($2.43bn) terminal project began in 2010. It is being privately financed by DP World. The two facilities together will generate 12,000 direct jobs and more than 20,000 indirect jobs.

With operations expected to commence in the last quarter of 2013, the new terminal will be capable of handling 3.5 million teu annually and accomdating the largest cargo vessels in the world.

The project is expected to cut the movement of 2,000 trucks on the national highways on a daily basis and reduce the shipping time of containers compared to the existing ports in England.

Strategic location of the London Gateway Port Terminal

"The port terminal and logistics park will generate 12,000 direct jobs and more than 20,000 indirect jobs."

The strategic collocation of the terminal and the logistics park will allow the London Gateway to become a major commercial hub in the near future.

The project is located just 25 miles away from central London with close proximity to the towns of Thurrock, Basildon, and Southend-on-Sea. The site also provides easy access to the south east of England. Almost 50% of the consumers in the UK are based in London and the south east.

Facilities of the deep-sea container port

The terminal will be built over an area of 175ha. It will have a quay length of 2,700m with 24 quay cranes in operation. It will comprise of six berths.

With a berth depth of 17m, the new terminal is being built to accommodate cargo vessels of up to 18,000teu.

The new terminal will be equipped with the latest Navis SPARCS N4 terminal operating system (TOS). The SPARCS N4 system with automated container handling equipment will be used for automating the processes at the main gate, the container yard and also at the rail terminal connecting the London Gateway Project site.

The terminal will also be equipped with the latest facilities for safety, time-saving and cost-efficiency. The facilities will include advanced vehicle booking systems (VBS), automated optical character recognition (OCR) for the road gate system, automatic stacking of cranes (ASC) using OCR, and light barriers for offloading and back-loading road vehicles.

A rail terminal is also being built near the port by Balfour Beatty, in a separate project. The new rail terminal is expected to be commissioned in the fourth quarter of 2012.

Details of Europe's largest logistics park in Essex

The logistics park will cover an area of 227ha, out of which approxmiately 9.25 million square feet (86ha) will be used to accommodate B8 warehousing, research, and service facilities such as retail and hotel.

"The project is located just 25 miles away from central London with close proximity to the towns of Thurrock, Basildon, and Southend-on-Sea."

The park will include roadways, service corridors, Sustainable Urban Drainage System (SUDS), buildings, rail terminal and a truck parking facility. Other facilities include footpaths and cycleways, including free space with extensive landscaping.

Key companies involved with the London Gateway project

Navis, which is a subsidiary of Cargotec, will supply the terminal operating solution (TOS) for the London Gateway. Cargotec was also contracted in 2011 to supply 40 Kalmar automatic stacking cranes and 28 Kalmar shuttle carriers.

The Port of London Authority (PLA) provided services such as diving, salvage and hydrographic surveys, monitoring of licences, and tidal works approval for the project.

The high energy impact compaction (HEIC) works are being carried out by LANDPAC.

The transportation and environmental engineering services are being provided by AECOM. The company also carried out the environmental impact assessment for the project.

Part of the construction work of the terminal has been contracted to the joint venture of Laing O'Rourke and Dredging International.

ZPMC will supply eight quay cranes for container operations at the rail terminal.

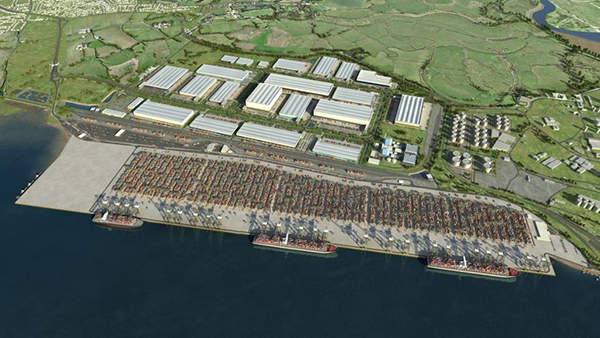

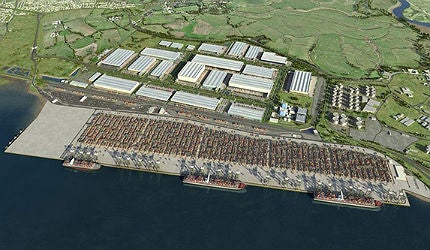

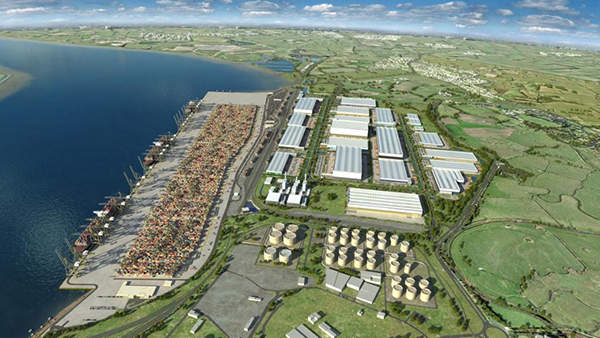

Aerial view of the proposed London Gateway port along with the logistics park.

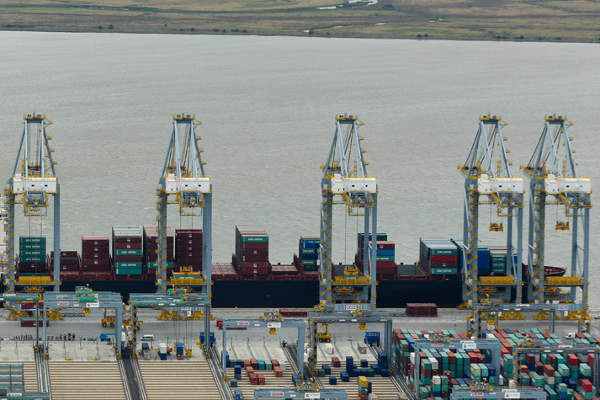

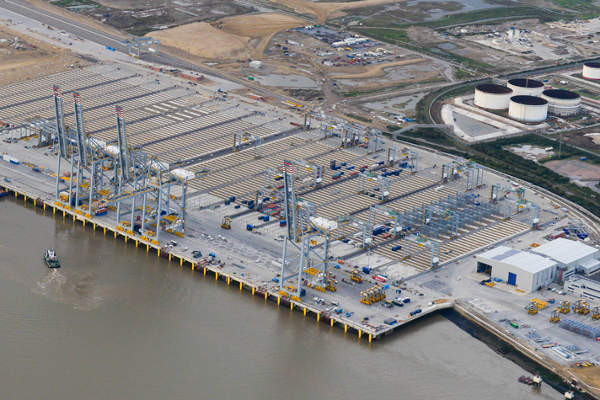

The terminal will have a quay length of 2,700m and six berths.

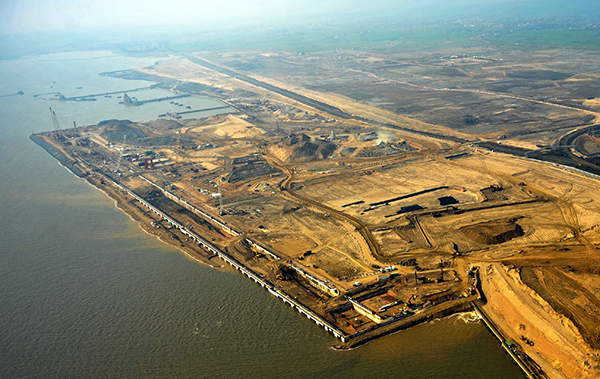

The construction work on the London Gateway terminal was started in 2010.

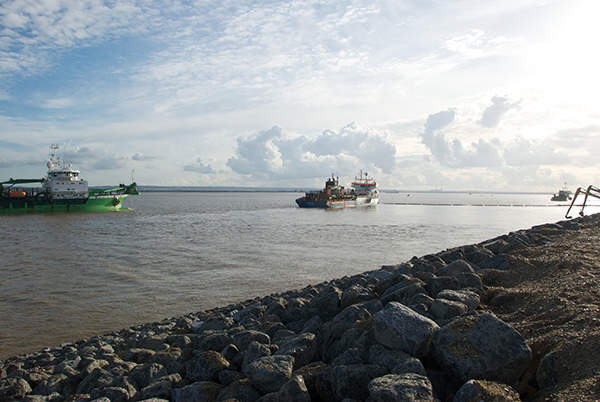

Dredgers being used to create the land required for the terminal’s construction.
