Ordered
February 2008
Construction Commenced
March 2011
Delivered
9 October 2012
Tonnage
126,000t
Passenger Capacity
3,046
Owner and Operator
Celebrity Cruises
Builder
Meyer Werft
3 Key Tips for a Successful Design Build Project

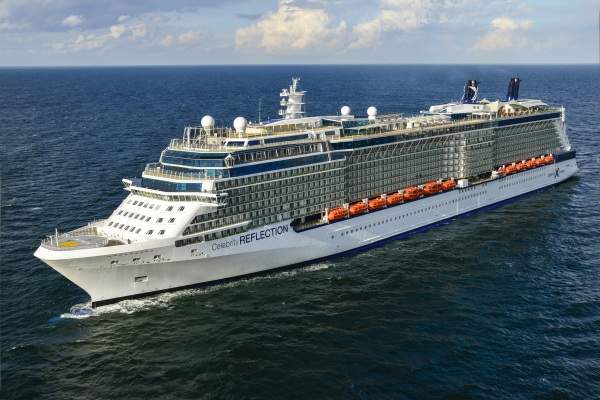

Celebrity Reflection is a Solstice-Class cruise ship owned and operated by the US cruise operator Celebrity Cruises, an affiliate of Royal Caribbean International. She is the fifth and final in the Solstice-Class cruise ship series. She was delivered on 9 October 2012 in the Dutch port of Eemshaven.
Celebrity Solstice is the first of the five Solstice-Class ships. She was delivered in October 2008. The second ship, Celebrity Equinox, was delivered in July 2009. Celebrity Eclipse and Celebrity Silhouette are the third and fourth sister ships. These were delivered in April 2010 and July 2011 respectively.
Orders for the construction of Solstice-Class ships
The Solstice-Class cruise ships were built by Meyer Werft at its Papenburg Shipyard in Germany. The first of the five vessels was ordered in July 2005.
This order also had an option for a second ship. It was exercised in February 2006. The third vessel was ordered in July 2006. The orders for the fourth and fifth ships were placed in May 2007 and February 2008 respectively.

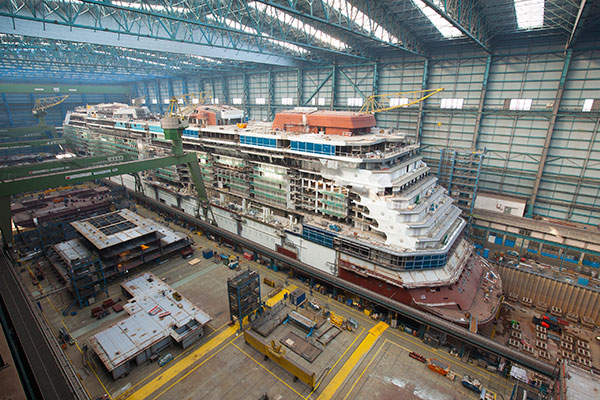

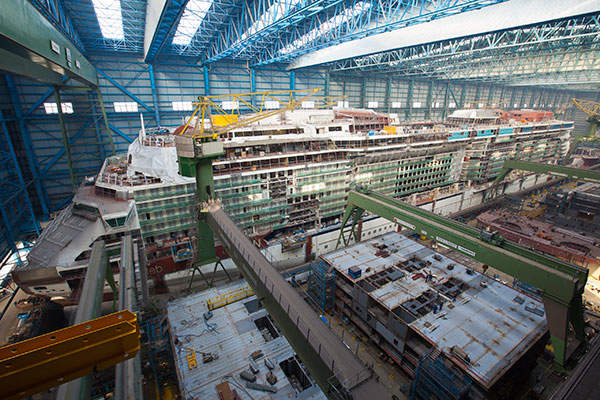

Production of steel for Celebrity Reflection, the fifth ship, was launched in March 2011. Keel laying of the vessel was held at Papenburg in September 2011. A series of tests and engine trials were conducted in the Dutch port of Eemshaven in September 2012.
Delivery of Celebrity Reflection marks the end of the construction of Solstice-Class series of cruise ships which required a total investment of about €3bn.
Design features of Celebrity Reflection
The overall design features of Celebrity Reflection are very similar to those of other vessels in the Solstice-Class series. Celebrity Reflection, however, has an extra deck of 72 staterooms and features the first Aqua Class suites. She is also the only ship of her class to have Reflection Class suites.
In order to accommodate the additional deck and to maintain balance while cruising, the vessel’s beam has been elongated by more than 3ft. Elongation of beam has enabled Celebrity Cruises to add extra space to some of the existing venues such as the outdoor decks which will have 245 new sun lounges and the theatre will accommodate 45 more seats.
Creation of extra space has increased the vessels overall size by 4,000t. Tonnage of Celebrity Reflection is 126,000t, while all the previous vessels weigh 122,000t.
Celebrity Reflection’s energy saving features are better than those of her sister ships. She is fitted with highly efficient illumining and LED lights. Heat exchangers are installed for efficient heat transfer. The vessel also makes use of heat and cold recovery systems.
Special underwater paints are used to improve resistance, which in turn will reduce the requirement of propulsion power.

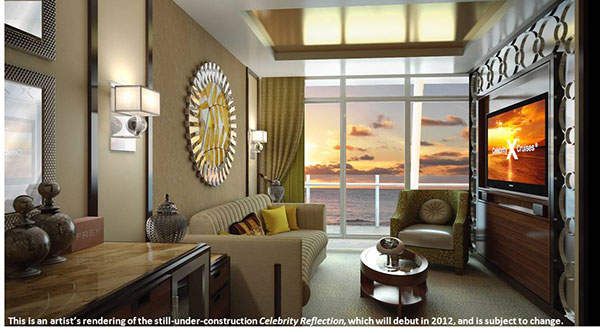

Staterooms aboard the fifth Solstice-Class cruise ship
Related project
Celebrity Silhouette Cruise Ship, US
Celebrity Silhouette is the fourth of five cruise ships in the Solstice-class operated by Celebrity Cruises.
A total of 3,046 passengers can be accommodated in 1,515 cabins. On average, all standard cabins are more spacious than those on the previous four vessels.
Less than 10% of the total passenger cabins are inside. About 90% of the outside cabins are provided with private balconies.
Cabin combinations on the cruise ship Celebrity Reflection include Celebrity Reflection Penthouse Suite, Royal Suite, Celebrity Suite, Sky Suite, Aqua Class, Concierge Class, Family Ocean View with Veranda, Sunset Veranda Stateroom, Deluxe Ocean View with Veranda, Ocean View Stateroom and Inside Stateroom.
These staterooms occupy an area of 177ft² to 1,291ft² . Private balconies range from 53ft² to 389ft².
Public and recreational venues on Celebrity Cruises’ ship
Celebrity Reflection claims to have a number of industry-first venues. One such place is the The Lawn Club Grill, a speciality restaurant where passengers will be allowed to grill their own meat. This venue is built in place of Corning Glass Museum present on the first three ships in the Solstice-Class.
Located on the top deck of the vessel is the Lawn Club, a dedicated area that features a natural lawn.
The Porch is another new venue on Celebrity Reflection. The 48-seat restaurant is placed next to the The Lawn Club and will offer food for breakfasts and lunch. Speciality coffees, beer and wine will also be served here.
The Art Studio is integrated within the area of The Lawn Club. It will be used for art demonstrations. The Alcoves, also within the The Lawn Club boundary, is a cabana-style private retreat venue designed for two to four guests.
Michael’s Club is common on all the ships operated by Celebrity Cruises.
Engine configuration and pod propulsion systems
Celebrity Reflection is equipped with four MAN diesel engines. The two 14V CR units are rated at 16,800kW, while the other two 12V CR engines are rated at 14,400kW. The combined engine output stands at 62,400kW and propulsive power at 35,000kW.
The ship is also fitted with diesel-electric azimuthing pods.
