Olympic Class Ferries

Olympic class ferries are being built by Vigor Industrial, a subsidiary of US Fab, for Washington State Ferries (WSF).

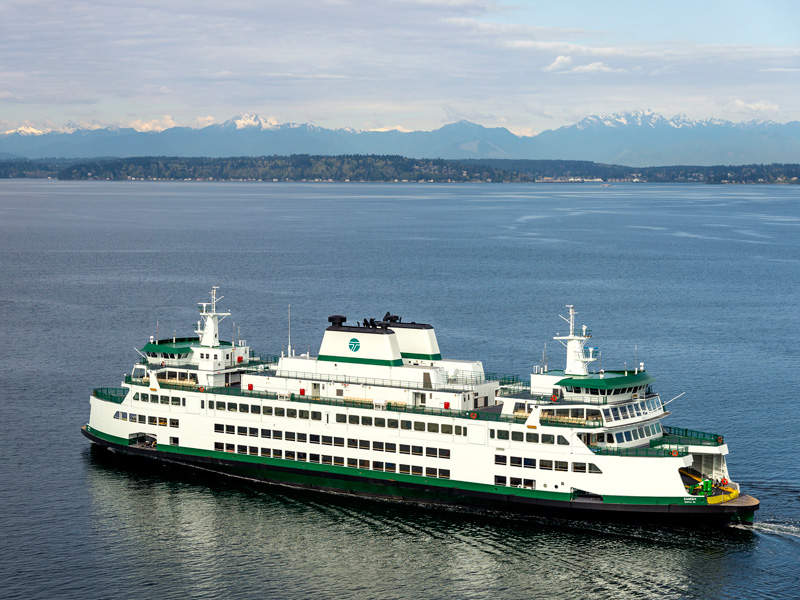

Olympic class ferries are a class of car/passenger carrying ferries owned by Washington State Ferries. Image courtesy of Washington State Department of Transportation.

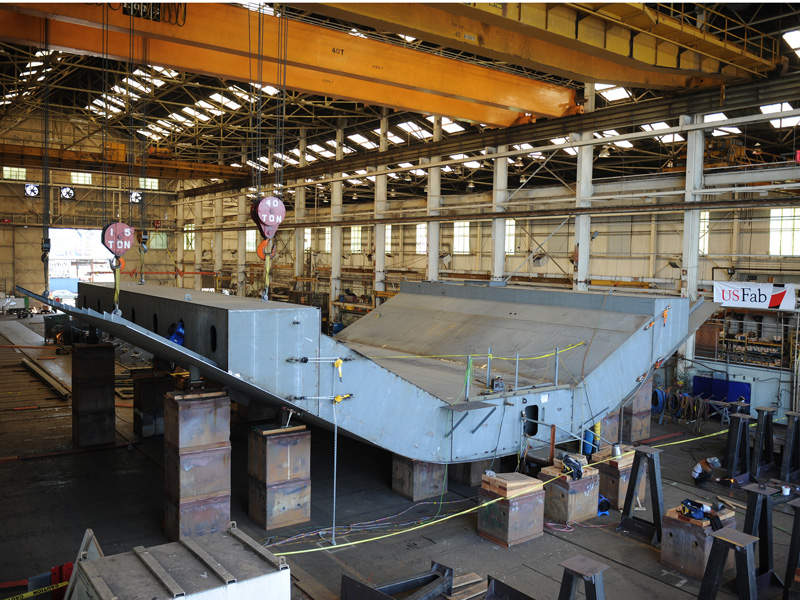

The ferries are being constructed by Vigor Industrial at its Harbour Island Shipyard in Seattle. Image courtesy of Washington State Department of Transportation.
An agreement for the construction of Olympic class ferries was signed between Vigor and Washington State Ferries. Image courtesy of Washington State Department of Transportation.
The Olympic class ferries feature two masts with radar platforms. Image courtesy of Washington State Department of Transportation.

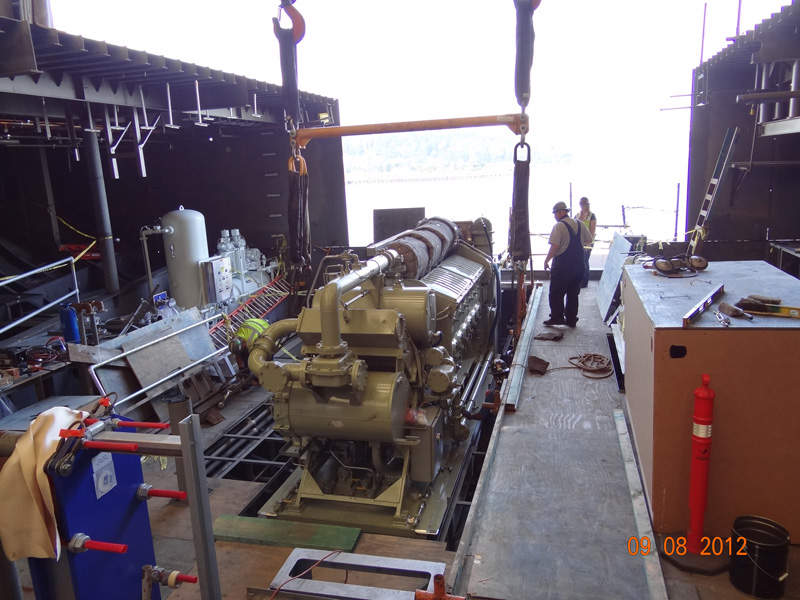

Olympic class ferries are powered by two diesel engines rated at 3,000hp each. Image courtesy of Washington State Department of Transportation.

Olympic Class Ferries

Olympic class ferries are being built by Vigor Industrial, a subsidiary of US Fab, for Washington State Ferries (WSF).

The class includes four ferries, namely MV Tokitae, MV Samish, MV Chimacum and MV Suquamish.

The first and the second vessels entered service in June 2014 and June 2015 respectively, while the other two ferries are expected to begin operations in 2017 and 2018.

The vessels are being built at Vigor Industrial’s shipyard on Harbor Island in Seattle, US, at an estimated cost of $515.5m. They will replace nine vessels used by WSF since the 1950s.

Olympic class ferries design and features

The double-ended hull design of Olympic class ferries has been inspired by the Issaquah class, which contains the most versatile vessel in the WSF fleet. The hull has been designed to minimise the vessels’ wake.

The new fuel-efficient ferries have an overall length of 362.3ft, beam of 83.2ft, draft of 18ft and displacement of 4,384t.

They offer an auto deck clearance of 16ft, as well as carry up to 144 vehicles and 1,500 passengers.

Passenger and cargo facilities

Olympic class ferries comply with Americans with Disabilities Act (ADA) specifications. Elevators are installed at both ends of the vessels’ hull.

Each vessel includes two car decks and two passenger decks, accessible via a staircase, and wide lanes to enable easy loading and unloading of vehicles.

The MV Samish offers an ADA restroom on its car decks, while the next ferries to be built will include disabled-friendly restrooms.

The main passenger cabin offers 12 wheelchair spaces, a dining area, and vending and newspaper machines.

The vessels provide flexible seating areas with heating, ventilation and air conditioning (HVAC) systems.

Olympic class feature visual paging systems, implemented by Washington State Department of Transportation (WSDOT), that display important travel-related information on video screens.

Deck equipment and safety system aboard the Olympic class

Each Olympic class ferry is equipped with a rescue boat, two masts with radar platforms, and a pilothouse at either end of the vessel.

"The vessels provide flexible seating areas with heating, ventilation and air conditioning (HVAC) systems."

State-of-the-art emergency evacuation and advanced fire suppression systems are installed on-board the ferries.

Propulsion and engine details

The vessels are equipped with two diesel engines that provide a total power output of 6,000hp. The engines are coupled to a single Rolls Royce propeller through an inter-connecting shaft.

Olympic class ferries also feature four MTU Series 60 300kW emergency generators.

The environmentally friendly engines run on low-emission fuels and reduce the risk of spills.

The propulsion system allows the ferries to sail at an economical speed of 14kt and a maximum speed of 17kt.
