Communication Cables for the Marine Industry

Established in 1913, NEK Kabel has more than 100 years' experience in designing, manufacturing and supplying the most diverse cables for a wide range of applications. Our experience and knowledge, together with research, development and design capabilities, enable NEK Kabel to operate in the most demanding international markets for both standard and tailor-made cable.



Address
Lurtoppen 2,
PB 186,
Lorenskog,
NO-1471,
Norway
Phone
Fax Number
Share

Established in 1913, NEK Kabel has more than 100 years’ experience in designing, manufacturing and supplying the most diverse cables for a wide range of applications. Our experience and knowledge, together with research, development and design capabilities, enable NEK Kabel to operate in the most demanding international markets for both standard and tailor-made cable.

Over the years, NEK Kabel has continually developed its series of communication cables for the marine and oil and gas industries. Now NEK Kabel offers the market one of the most comprehensive ranges of DNV (and soon also ABS)-approved cables; from LAN to BUS cables, coaxial to RS cables, fibre optic to composite and custom-made cables. The company takes pride in its flexibility, short delivery times and often low quantities for production.

LAN cables for the marine industry

The LanMarin series includes LAN cables Cat.5e, Cat.6 and Cat.7 for both horizontal cabling and patching. All cables are supplied with LSZH and SHF1 characteristics, as well as being fire-retardant according to IEC60332-3-22 Cat.A. The whole series is also available as MUD-resistant NEK606. NEK Kabel completes its range of LAN cables with high-quality compatible RJ45 keystone jacks and plugs to guarantee the best performance.

Coaxial cables for broadcast transmissions

The coaxial range includes RG type cables 50Ohm and 75Ohm to support all kinds of radio, video and broadcast transmissions. The series currently comprises RG58, RG59, RG6, RG11, RG213 and RG214, all in non-armoured and armoured versions. Both versions are SHF1, LSZH and fire-retardant according to IEC60332-3-22 Cat.A. The whole series is also available as MUD-resistant NEK606. NEK Kabel completes the range with high-quality connectivity to guarantee the best transmission performance.

NEK Kabel has more than 100 years of experience.
We provide cables for the marine and oil and gas industries.
Our cables are DNV-approved and will soon be ABS-approved.
Cable types include LAN, BUS, coaxial, RS and fibre optic.

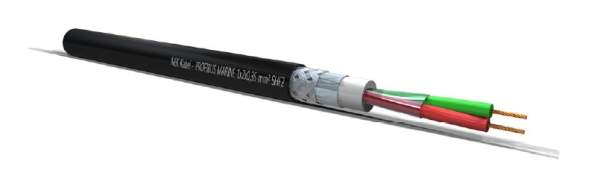

Profibus SHF2.

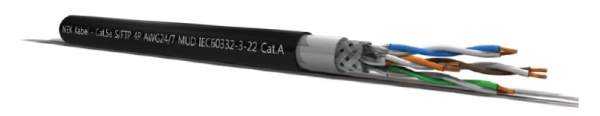

LanMarin S/FTP.

BUS and RS cables for the maritime sector

For BUS applications, NEK Kabel offers high-quality Profibus and CAN BUS cables, based on LSZH SHF2 properties and provided with IEC60332-3-22 Cat.A fire-retardant level. The whole series is also available as MUD-resistant NEK606.

NEK Kabel also supplies RS422 and RS485 cables, from one to four pairs. Both cables are provided with LSZH and SHF1 characteristics, armoured by bronze braid and fire-retardant IEC60332-3-22 Cat.A. The whole series is also available as MUD-resistant NEK606.

Fibre optic communication cables

NEK Kabel supplies two main types of fibre optic cables with DNV (and soon also ABS) approval: tight buffered design AICI and loose tube type QFCI. Both are provided with LSZH SHF1 characteristics and are fire-retardant according to IEC60332-3-22 Cat.A. In addition, QFCI is provided with fire-resistant characteristics in compliance with IEC60331. The whole series is also available as MUD-resistant NEK606.

Custom cables for offshore applications

In addition to many standard cables, NEK Kabel manufactures custom cables to meet the requirements of specific clients and diverse applications. These capabilities include:

  • Hybrid cables
  • Arctic grade cables
  • Cables for high temperature
  • Cables for underwater and subsea applications

All cables can also be produced as SHF2 and MUD-resistant according to NEK606 for offshore environments.

NEK Kabel has a presence in Norway, Finland and Asia Pacific, with a growing global network of representatives, agents and distributors providing support and availability wherever required by customers.

Projects

  • Color Hybrid Ferry

    Color Hybrid is a new plug-in hybrid ferry designed by Ulstein Verft in Norway.

  • MM125FD LNG-Powered Ferries

    Norwegian ferry owner and operator Torghatten Nord selected Multi Maritime’s MM125FD LNG design for two LNG-powered car and passenger ferries to be built by Vard Holdings.
