Aplisens is a European manufacturer of high-quality measuring instrumentation, with its main factory and headquarters located in Warsaw, Poland. From the beginning the company has concentrated on electronic pressure, differential pressure and level measurement technology.

Our main strengths have always been high-quality, high flexibility and competent support to customers. Constant development, high-tech production and an ISO 9001 management system are the best guarantee of the quality of our products.

Submersible hydrostatic level probes

We manufacture a wide range of hydrostatic level probes.

The Model SGE-25 is a submersible, analogue, compact transmitter designed for level measurement of liquids. It features:

Aplisens is a European manufacturer of high-quality measuring instrumentation for marine use.<br/><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/>
The company specializes in electronic pressure, differential pressure and level measurement technology.<br/><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/>
Our main strengths have always been high-quality, high flexibility and competent support to customers.
  • Range from 0m-1m to 0m-500m H2O (fixed range)
  • Output of 4mA-20mA or 0V-10V
  • Hastelloy diaphragm and housing 316L
  • Poliurethane or Teflon cable
  • ATEX and DNV certificates

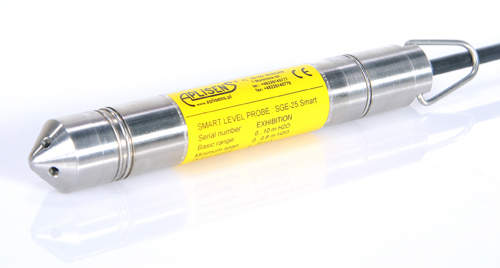

Smart, compact transmitter level probe

The Model SGE-25Smart is a smart, compact transmitter level probe designed for level measurement of liquids. The probe allows for remote configuration of many parameters e.g. zeroing, span adjustment, damping setting and inversion of output. Remote configuration is available via a handheld communicator or a PC with RAPORT-01 software. It features:

  • Range from 0m-0.8m to 0m-100m H2O (adjusted by end-user)
  • Output of 4mA-20mA +Hart, Profibus PA
  • Hastelloy diaphragm, housing 316L (wetted parts in tantalum optional)
  • Poliurethane or Teflon cable
  • Remote zero and span adjustment
  • ATEX and DNV certificates

Smart level probes

The Model APC-2000 ALW/SG is a smart level probe designed for level measurement of liquids. The probe consists of a submersible sensor connected with a cable to a remote transmitter.

The transmitter is equipped with a local display and panel buttons allowing local adjustment of many parameters, e.g. zeroing, span adjustment, damping setting and inversion of output. Remote configuration is also available via a handheld communicator or a PC with RAPORT-01 software.

Features include:

  • Range from 0m-0.8m to 0m-100m H2O (adjusted by end-user)
  • Output of 4mA-20mA +Hart
  • Hastelloy diaphragm and 316L stainless-steel housing
  • Poliurethane or Teflon cable
  • Remote and local zero and span adjustment
  • Local display
  • ATEX and DNV certificates

Pressure / level transmitters

The Model PCE-28 is an analogue compact pressure transmitter. The transmitter is available in any range from 10mbar to 1,000bar. Equipped in a diaphragm seal, it can be used as a level transmitter in open tanks. It has a wide range of process and electrical connections, and holds ATEX and DNV certificates.

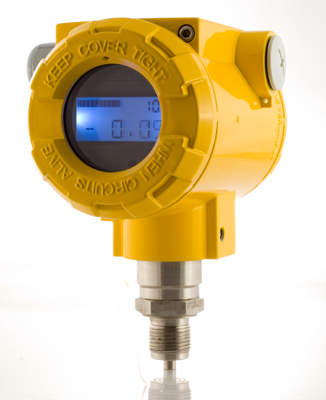

The Model APC-2000ALW is a smart compact pressure transmitter. The transmitter is available in any range from 1mbar to 1,000bar. Equipped in a diaphragm seal, it can be used as a level transmitter in open tanks, and has a wide range of process connections.

The transmitter is equipped with a local display and panel buttons, allowing local adjustment of many parameters, e.g. zeroing, span adjustment, damping setting and inversion of output. Configuration is also available via a handheld communicator or a PC with RAPORT-01 software. The transmitter holds ATEX and DNV certificates.

Differential pressure / level transmitters

The Model PRE-28 is an analogue compact differential pressure transmitter. The transmitter is available in any range from 10mbar to 25bar. Equipped in a diaphragm seal, it can be used as a level transmitter in pressured tanks. A wide range of electrical connections are available, and the transmitter holds ATEX and DNV certificates.

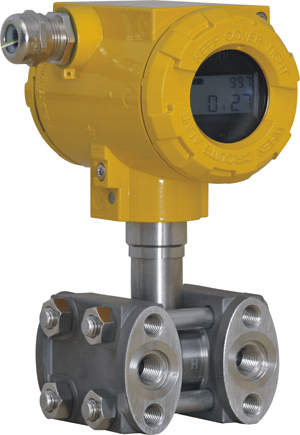

The Model APR-2000ALW is a smart compact differential pressure transmitter. It is available in any range from 0.2mbar to 25bar. Equipped in a diaphragm seal, it can be used as a level transmitter in pressured tanks. The transmitter is equipped with local display and panel buttons, allowing local adjustment of many parameters, e.g. zeroing, span adjustment, damping setting and inversion of output.

Configuration is also available via a handheld communicator or a PC with RAPORT-01 software. The transmitter holds ATEX and DNV certificates.

Level switches

ERH type level switches are used for point-level detection in all type of vessels. Operation is possible without a power supply, and side or top-mounting stainless-steel wetted parts are available.

Explosion-proof and marine certificates make the ERH a universally applicable level switch.
