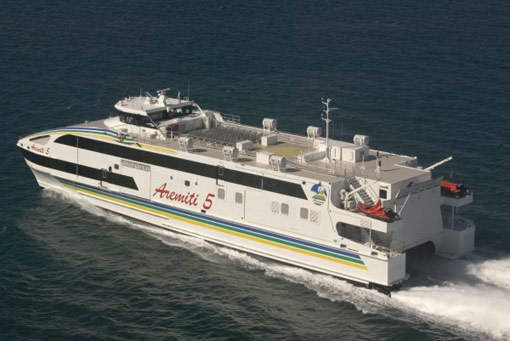

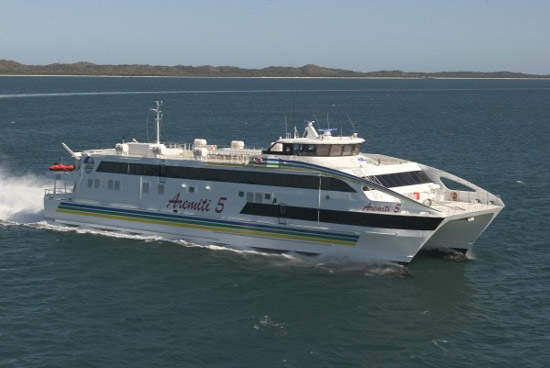

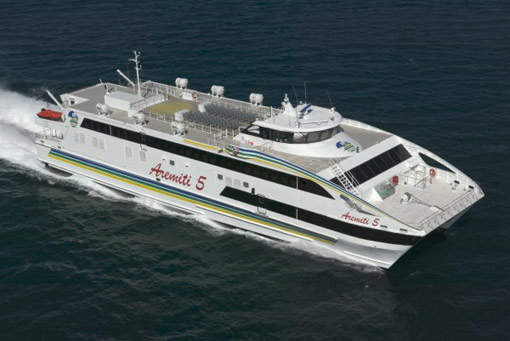

The Aremiti 5 is an Austal Auto Express 56 ferry which works between the French Polynesian islands of Papeete, Morea and Bora Bora. It has an overall length of 56.6m or 49.8m at the waterline. The vessel’s beam is 14m, its moulded depth 5m and it has a 1.9m draught. The maximum deadweight is 117t.
The Aremiti 5 has capacity for up to 700 passengers and 30 cars. Passenger seating is located on three decks. On the bridge deck, 70 Ocean Steamer seats are available for passengers outside. On the upper deck, Ocean Tourist aircraft-style seating is provided for 346 passengers in the forward and midships lounges. Each seat comes complete with fold-down tables and information.
Separating the two lounges is an amenities block that also houses a crew room. This features comfortable sofa seating around two tables, food preparation equipment and a colour TV with VCR.
In the aft lounge, where seating is provided for 156 passengers, a licensed café serves beverages and hot and cold snacks. Outboard of the main dining area, alongside the windows, aircraft style seats are placed in rows of three.
Below, on the main deck, a lounge with aircraft style seating for 128 passengers has been provided forward of the vehicle deck. Four aisles separate the seating blocks, which provide for seating configurations of three across the entire lounge.
Video monitors are distributed through the passenger saloon and audio is distributed via ceiling mounted speakers from the VCR, compact disc player, cassette player and AM/FM tuner, all of which are operated from an entertainment rack mounted in the kiosk.

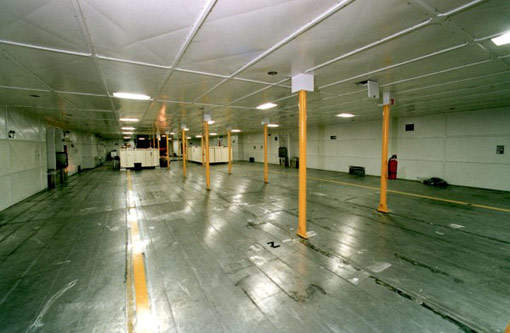

The vehicle space is located aft and can accommodate up to 30 cars with axle loads of up to 1.5t. The vehicle deck has a height clearance of 2.6m. The ship is configured for a fast turnaround via ramps over the stern and port side of the vessel. Vehicle deck access is 5m long and 6m wide at the aft ramp, and 3m long by 3.8m wide at the port side ramp. On each side outboard of the stern ramp there are pedestrian walk-ways for foot passengers. The walk-way on the port side is sufficiently wide for wheelchair access.

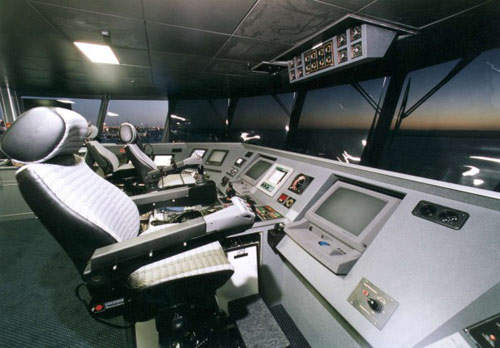

Aremiti 5 operates with a crew of ten including a three-person bridge team. The Captain is seated to the starboard side of the bridge and First Officer to the port side while the Chief Engineer is situated to starboard and behind the Captain.
The vessel is powered by four MTU 16V 4000 M70 diesel engines, each providing a maximum power output of 2,320kW at 2,000rpm. Each engine drives a Kamewa 71 SII waterjet through a Reintjes VLJ 930 gearbox. This gives it a speed of 35 knots at 90% Maximum Continuous Rating.
Ensuring a comfortable ride for all onboard the vessel is fitted with a Seastate motion control system consisting of T foils forward and variable interceptors aft.
