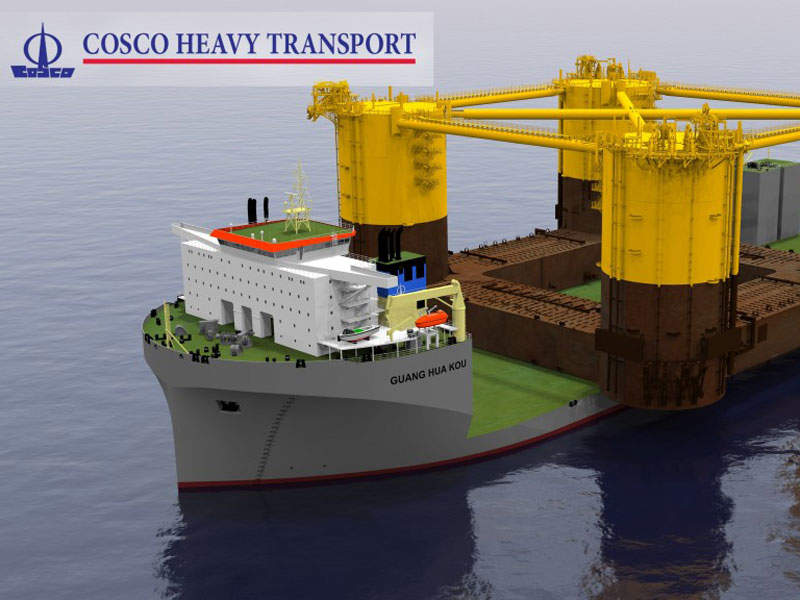

Xin Guang Hua is the world’s second biggest ship of its kind. Image courtesy of COSCO Shipping Company Limited.

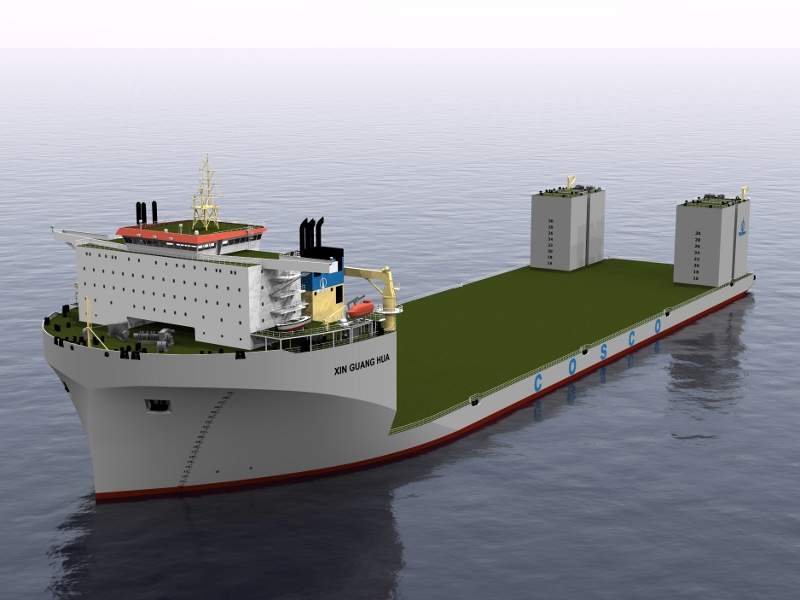

The heavy-lift vessel was launched in April 2016. Image courtesy of COSCO Shipping Company Limited.

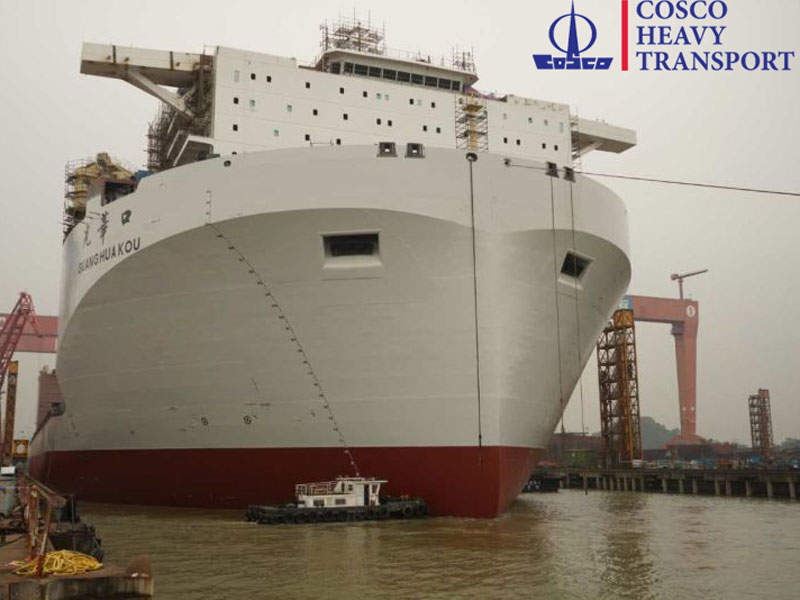

Xin Guang Hua is part of COSCO Shipping Company’s growing semi-submersible fleet. Image courtesy of COSCO Shipping Company Limited.

Xin Guang Hua

Xin Guang Hua is a new semi-submersible vessel being built by COSCO Shipping Company (COSCOL). The 98,000dwt heavy-lift vessel is the second largest of its type in the world, after Dockwise Vanguard. Formerly known as Guang Hua Kou, the vessel was renamed following the merger of COSCO and China Shipping.

The semi-submersible vessel was launched in April 2016 with a steel cutting ceremony. It is being built at CSSC Offshore & Marine Engineering’s Guangzhou shipyard in China, and is expected to be delivered in the last quarter of 2016.

Xin Guang Hua vessel design details

The Xin Guang Hua has an overall length of 255m (837ft) and a breadth of 68m (223ft). The length between perpendiculars is 250.2m (820.9ft), loaded draft is 10m (32.8ft) and hull depth is 14.5m (47.6ft).

The vessel features a large open deck measuring 208.4m (683.7ft) in length and 68m in breadth (223ft). It can carry an overall maximum load of 20t and 125t on webframes provided at every 2.4m (7.9ft) of the deck.

Designed with enhanced internal strength, the vessel can handle both stern and side loading. It will have a deck submerging capacity of 16m, which will enable it to carry large floating structures.

Propulsion for the Chinese semi-submersible vessel

The heavy-lift vessel will be equipped with a diesel-electric propulsion system providing a power output of 10,500kW. Two 2,650kW bow thrusters and two 2,650kW stern thrusters are also part of the propulsion system.

The propulsion system will also feature two fixed pitch propellers and Class 2 dynamic positioning system. To improve the safety and reliability of the vessel, it is being designed with double separate redundant propulsion and ballast systems.

The system enables the vessel to sail at a maximum service speed of 13.5k.

Equipment and systems onboard Xin Guang Hua

The vessel is equipped with eight transverse bulkheads, one longitudinal bulkhead at centreline and another two at 17m (55.8ft) from centreline.

For large loads, the vessel features four easily removable stern buoyancy casings, two of which are stowed inside forward recess.

The vessel can be used for dry transportation of ships, drilling platforms, offshore structures, jack-up rigs and construction equipment. It can provide 440V of power supply to cargo during transit.

Tank capacities and accommodation

The vessel is equipped with 112 ballast tanks, located on the top, bottom, centre and side, which improve its motion and acceleration.

Ballasting will be controlled by four high-capacity air compressors with a capacity of 8,500m³/h. The compressors can complete ballasting operations in approximately six hours.

"The heavy-lift vessel will be equipped with a diesel-electric propulsion system providing a power output of 10,500kW."

The ship will also be equipped with two 1,500m³/h ballasting pumps and two 550m³/h ballasting pumps.

Accommodation for 100 personnel is also available on the ship.

Contracts executed on the new semi-submersible vessel

In March 2016, COSCOL was awarded a contract by Shell to transport its 41,165t Appomattox semi-submersible offshore platform from South Korea to Ingleside, Texas. COSCOL will make the delivery using the Xin Guang Hua vessel.

ABB has supplied its turbochargers for the heavy-lift vessel.
