In over 50 years the KRAL brand has become a household name when it comes to pumps and flow measurement. Our cooperation with customers worldwide has created the precision and quality to which the KRAL name is linked.

Our worldwide presence is the basis for many unique solutions that have been developed with our customers. Today we are active in more than 40 countries on all five continents. Trained representatives, who provide the sales service for KRAL pumps and the KRAL Volumeter®, are our bridge to the market. KRAL offers its customers complete solutions including development, construction, manufacture, assembly and accredited inspection testing.

High-power density displacement pumps

KRAL screw spindle pumps, in comparison to other positive displacement technologies, can deliver large flow rates in a compact size design even when operating at high differential pressures. The compact single pumps and pump stations handle a range of liquids. Oils and other lubricants, which are non-abrasive and chemically inert, are delivered with the advantage of pulse-free flow and low noise levels.

As an innovative company, KRAL is able to offer tailor-made system solutions for your pumping requirements.

KRAL precision – more than 30% of KRAL's production staff are master craftsmen of pumps and flow measurement systems.

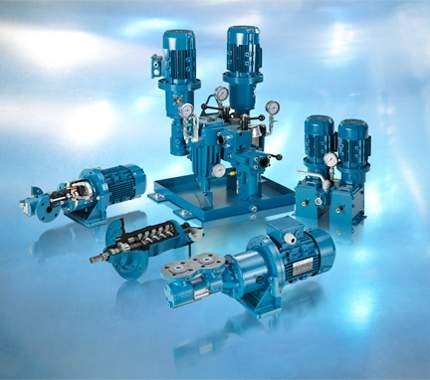

KRAL high-power density displacement pumps. The compact single pumps and pump stations handle a range of liquids.

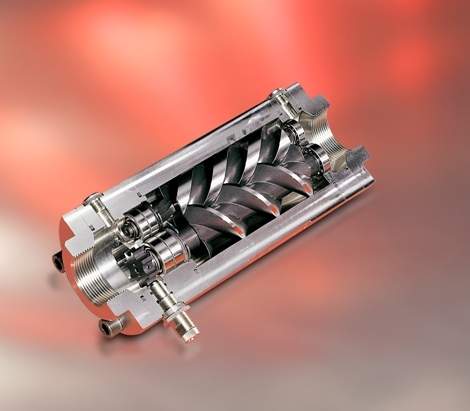

The KRAL Volumeter® is a robust liquid flowmeter and offers laboratory precision even in harsh, industrial applications.

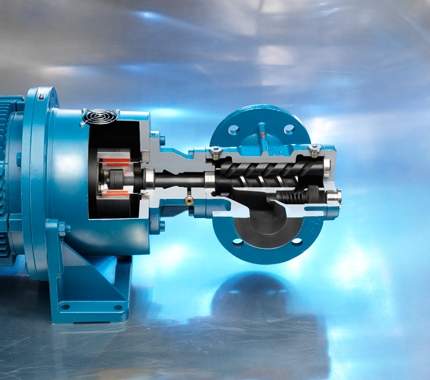

KRAL screw pump with magnetic coupling.

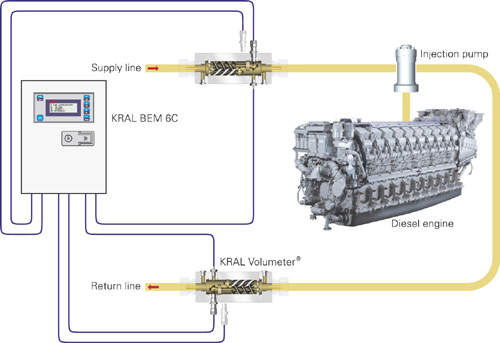

Complete economy system for single-engine measurement, typically river boats and yachts.

Precision flowmeters

The KRAL Volumeter is a robust liquid flowmeter and offers laboratory precision even in harsh, industrial applications. The positive displacement meters operate with the screw spindle principle and measure independently from the flow profile. For that reason the very compact Volumeter never needs flow conditioning and can be installed directly after elbows, tees and other pipe components.

KRAL screw pumps with magnetic coupling

The economy of drive units and firing systems is further improved by the use of KRAL screw pumps with magnetic couplings.

KRAL screw pumps serve mainly for pumping oils for firing systems in power stations for electrical generation and on ships for propulsion. Because of the economic relevance, operators place high demands on the operational safety and reliability of such systems.

The main features of KRAL pumps are:

  • Hermetically sealed
  • Lifecycle costs reduction
  • Absolutely maintenance-free

Engine-specific fuel consumption measurement

About 80% of diesel engine operating costs are fuel costs. IPPs want to check the specified specific fuel oil consumption (SFOC) during commissioning and the fuel consumption (FC) during operation. Harsh operating conditions like fluid pulsation, temperature differences and vibrations have made this impossible in the past. KRAL offers a robust fuel consumption measurement system.

The main features of the KRAL Volumeter are:

  • The KRAL Volumeter makes engine-related FC measurement possible
  • Higher measurement accuracy with temperature compensation
  • Higher increase of measurement accuracy with pressure pulse compensation
  • KRAL offers a fuel system adjustment analyser

Press Releases

  • KRAL - Partner for Unique Solutions

    KRAL is an international manufacturer of high-quality screw pumps, flow meters and installations for all kinds of marine fuels and lube oils. KRAL is well known as a reliable and flexible partner for unique and tailor made system solutions, and has the know-how and the expertise to turn customers

  • KRAL Volumeter® – Fuel Consumption Measurement for Diesel Engines

    About 80% of diesel engine operating costs are fuel costs. IPP's want to check the specified Specific Fuel Oil Consumption (SFOC) during commissioning and the Fuel Consumption (FC) during operation. Harsh operating conditions like fluid pulsation, temperature differences and vibrations made this

  • Reducing Fire Risk in the Engine Room.

    Increased onboard safety through the KRAL AG pump upgrade project. As a trial and return project, KRAL has been offering hermetically sealed pumps for booster-modules to ship owners and operators. Defects of screw pumps in marine booster-modules are some of the most frequent incidents

  • A Seaworthy Magnet Coupling Technology

    KRAL recognizes the advantages of using magnet couplings in the pump industry, and has many years of experience in designing and manufacturing screw pumps with magnet couplings. LEAKAGE-FREE PUMPS UTILIZING MAGNETIC COUPLING Normally, the cost premium total leak free s

  • Exhibitions

    Krautler will be attending the following exhibitions: 10 to 11 May 2005 Automobil-Forum 2005 Stuttgart, Germany 15 to 19 May 2006 Achema 2006 Frankfurt, Germany 7 to 10 June 2005 Nor-Shipping 2005 Oslo, Norway 8

  • KRAL Pumps in Maritime Applications

    Used in the fuel system of ships, KRAL screw spindle pumps with magnetic coupling offer essential advantages. Among them are reduced lifecycle costs and noticeably higher operational safety. Normally, fuel oils that power ships are diesel fuel or heating oil EL and heavy oil. They ha

Projects

  • Anaklia Deep Sea Port

    Anaklia deep sea port, the first deep water container port in Georgia, is being developed by Anaklia Development Consortium (ADC).

  • Lekki Deep Sea Port, Lagos, Nigeria

    Lekki deepsea port is being built over 90ha of land at the centre of the Lagos Free Trade Zone, approximately 60km east of Lagos. It is the first deepsea port to be built in Nigeria.
