Fortaleza Knutsen Shuttle Tanker

Fortaleza Knutsen is the first of the two 105,000DWT shuttle tankers to join Knutsen OAS Shipping's fleet.

Owner

Knutsen OAS Shipping

Constructor

COSCO, Nantong

Delivered

March 2011

Main Engine

MAN B&W 7S60MC-C diesel

Speed

14.7kts

Vessel Specification

246.80m in length, 42m in breadth, draft of 15.30m and displacement of 63,560t

Expand

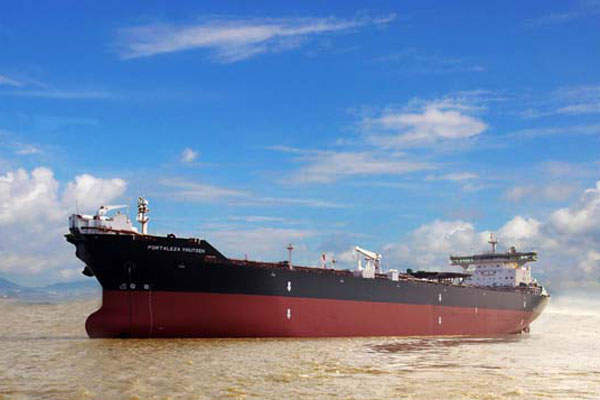

Fortaleza Knutsen shuttle tanker is owned by Knutsen OAS Shipping and currently serves Petrobras Transporte (Transpetro). Image courtesy of COSCO Shipyard.

Fortaleza Knutsen shuttle tanker was named in December 2010. Image courtesy of COSCO Shipyard.

Fortaleza Knutsen was constructed by COSCO at its Nantong Shipyard. Image courtesy of COSCO Shipyard.

Fortaleza Knutsen is being used to transport crude oil

Fortaleza Knutsen is the first of the two 105,000DWT shuttle tankers to join Knutsen OAS Shipping’s fleet. She was constructed by COSCO at its Nantong Shipyard and currently serves Petrobras Transporte (Transpetro), along with her sister vessel Recife Knutsen.

Fortaleza Knutsen is being used to transport crude oil and condensates from offshore oil field installations of Petrobras to onshore terminals and refineries. The vessel will continue to serve Petrobras until 2023. It provides an alternative to the use of pipelines for the offshore industry.

Fortaleza Knutsen was named in December 2010 and was delivered in March 2011. It meets the standards and safety requirements of three parties, including Norway’s Statoil, Petrobras and DNV.

The vessel carries the DNV 1A1, "tanker for oil ESP", CSR, E0, DYNPOS-AUTR, OPP-F, ICS, BOW LOADING, SPM, F-AMC. NAUTOC, HELDK-SH, TMON, and VCS-2 class notations.

Fortaleza Knutsen design and specifications

"The vessel will continue to serve Petrobras until 2023. It provides an alternative to the use of pipelines for the offshore industry."

The shuttle tanker is 246.80m in length, 42m in breadth, has a draft of 15.30m and a displacement of 63,560t.

The bow loading system of the vessel located on the main deck forward enables it to transmit crude oil both in the floating and moving states of the supplier and receiver respectively. The hull of the vessel is reinforced to prevent the crews from fatigue.

The vessel is equipped with Knutsen’s patented KVOC technology reducing volatile organic compounds (VOC) emission for pollution control, making it a low-carbon green offshore vessel.

The technology cuts down the generation of VOC during loading and transit by installing new drop lines for each tanker. The drop lines are designed with larger diameter compared to conventional lines and oil is fed at the deck level.

The poured oil flows at the cylinder wall and leaves an open space in the middle which, along with the reduced velocity of the oil due to the increased diameter of the drop lines, allows the gas to rise.

Accommodation and safety equipment on Fortaleza Knutsen

The shuttle tanker is capable of accommodating 40 people. It comprises of 26 single cabins, two cabins accommodating four people each and a cabin accommodating six people from the repair team.

Other facilities include two mess rooms, two recreation rooms, a hospital, a gymnasium and office spaces.

Fortaleza Knutsen also features a life boat, a rescue boat, a life raft and fire fighting equipments.

Fortaleza Knutsen tank capacities

The vessel is fitted with tanks that are capable of storing approximately 41,000m³ of ballast water, 300m³ of fresh water, 2,400m³ of fuel and 500m³ of diesel, in addition to cargo tanks and slop tanks with a storage capacity of 122,000m³.

Navigation and communication equipment

The vessel’s navigation system include one S-band and one X-band ARPA radars, two ECDIS (electronic chart display and information system) navigation systems, two differential global positioning system (DGPS) navigators, a transmitting magnetic compass, an auto pilot with a course recorder, three gyro compasses, a rudder angle indicator, an echo sounder and a Doppler speed log.

The communication equipment aboard the vessel complies with GMDSS A3 requirements.

Engines and machinery for the Brazilian shuttle tanker

The vessel is fitted with a main MAN B&W 7S60MC-C diesel engine with an output of 15,820kW, four STX-Man B&W 8L27/38 auxiliary engines with an output of 2,500kW and a KTA38-D(M) emergency diesel engine generator with an output of 710kW.

"The communication equipment aboard the vessel complies with GMDSS A3 requirements."

The vessel is capable of operating in severe conditions at sea thanks to its equipment and facilities including a DP2 (dynamic positioning system), a MAN VBS1800 ODS controllable pitch propeller, fore-and-after thruster, unmanned machinery space, a Schilling rudder and a heli-deck located on the upper deck.

The vessel’s propulsion system enables it to sail at a speed of 14.7kt.
