Prisma DI-5 and Prisma DI-5C Crankshaft Deflection Indicators

Lead

Prisma Tibro Sweden develops and manufactures high-quality electronic devices, such as Prisma DI-5 and Prisma DI-5C Deflection Indicators, for diesel and gas engine manufacturers, as well as shipping and offshore companies.

Crankshaft deflection measurement devices

Most engineers are familiar with the importance of regular checks on diesel and gas, liquefied natural gas (LNG), engine crankshafts and cylinder liners.

The old dial gauge crankshaft alignment checks were time-consuming, unpleasant, dirty and inaccurate. With Prisma Tibro's electronic deflection indicators Prisma DI-5 and DI-5C, the task is much easier and more accurate.

The series also features an optional Prisma Ovality Kit to check cylinder liner ovality and wear.

Prisma Deflection Indicators are used by hundreds of engineers in over 90 countries worldwide.

Accurate electronic deflection gauges

Prisma Tibro's electronic deflection gauge makes crankshaft alignment checks simpler and more convenient compared to the old dial gauges, as they don't require engines to be opened to take a reading.

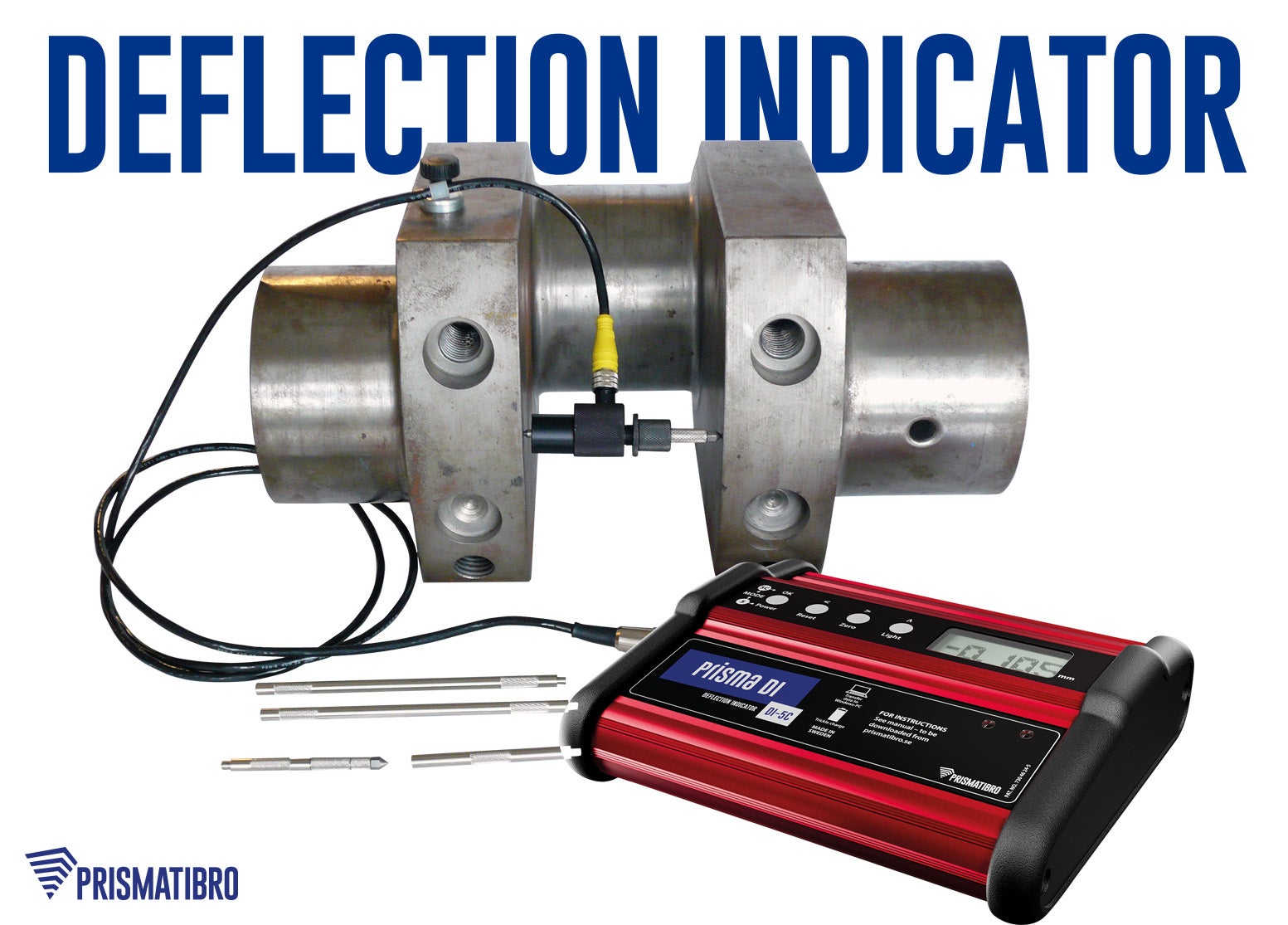

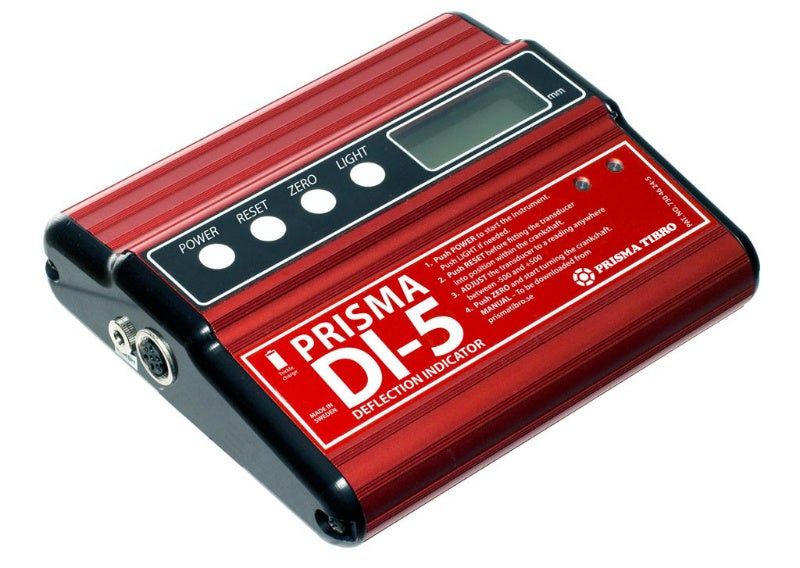

After fitting the transducer between the crankshaft webs at any of the positions A-E, the result is shown for each position on an exterior display, which is connected to a transducer with a 7m cable.

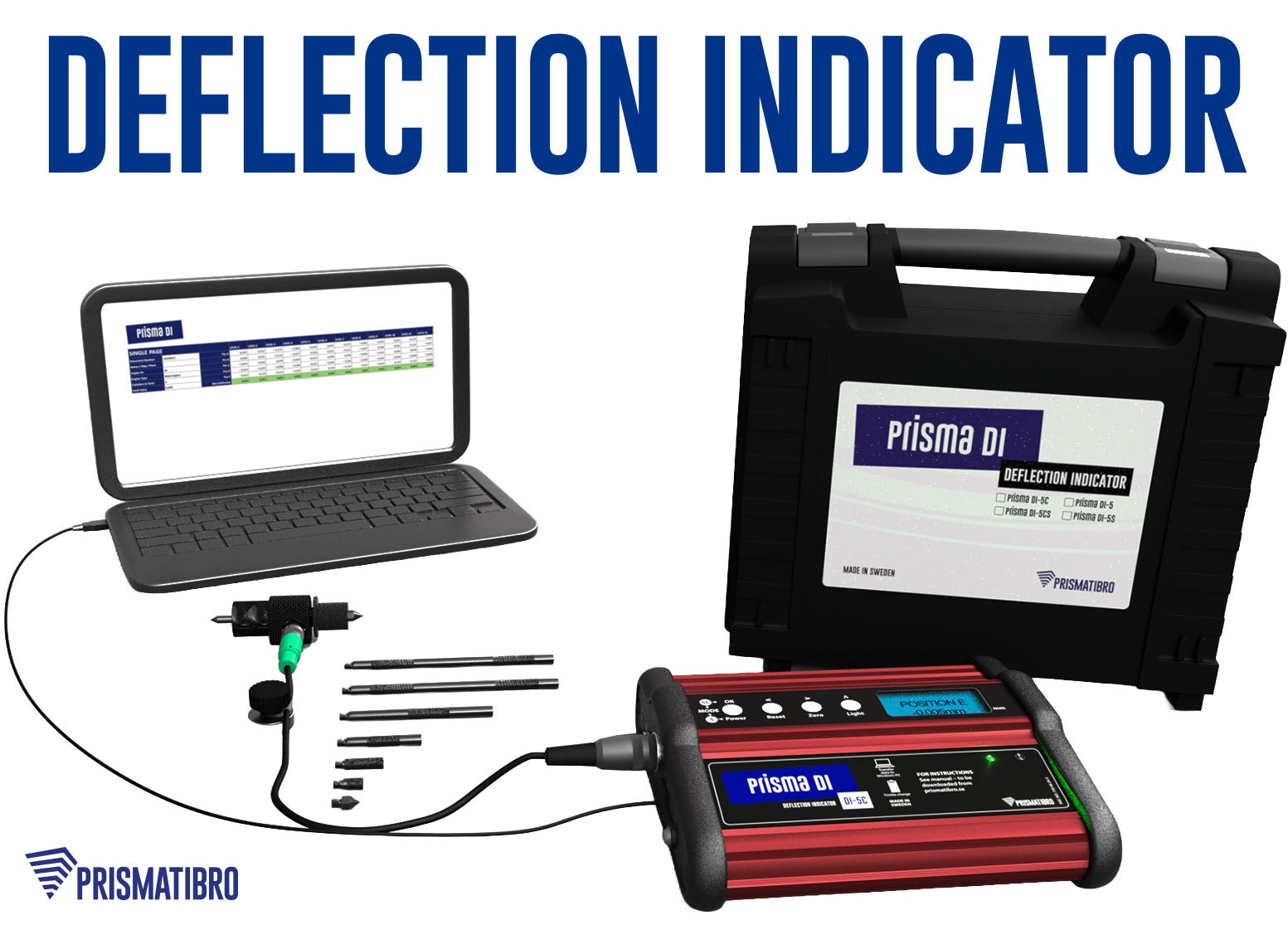

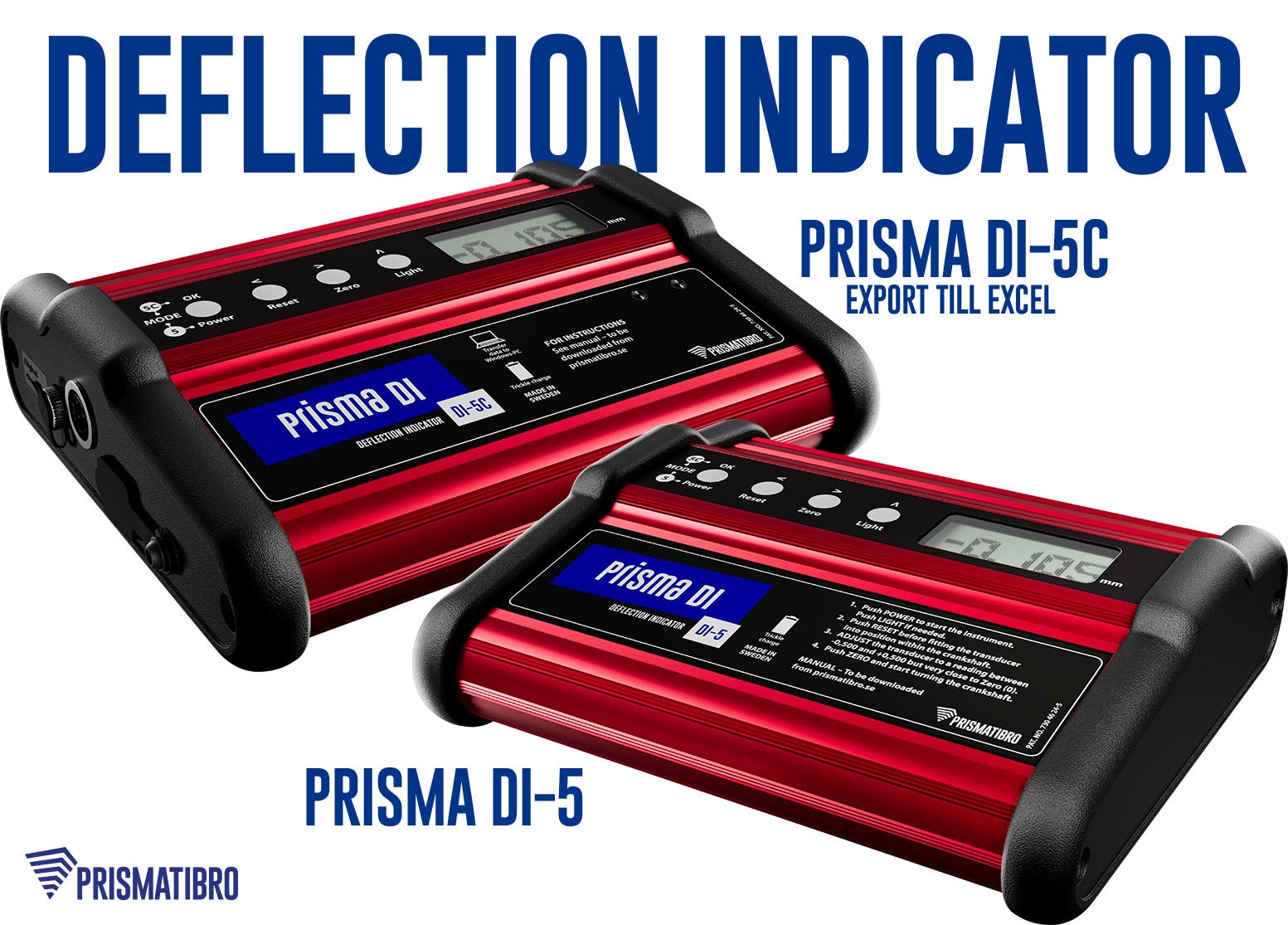

Prisma DI-5C saves the measured data, which can then be uploaded onto a computer via USB connection, and exported to Excel for further data processing and comparison.

The deflection evaluation software provides the crankshaft alignments for all cylinders, and is outlined with red and green status indications for easy comparison.

Deflection indicators for smaller size engines

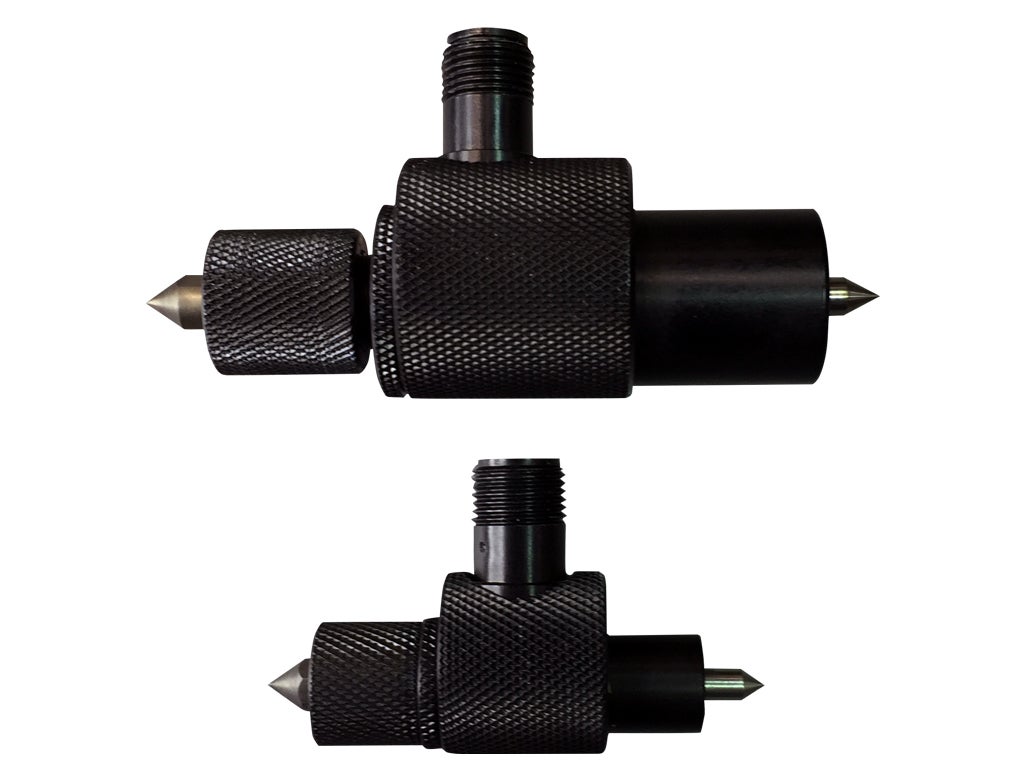

Prisma Tibro can provide the Prisma DI-5S and Prisma DI-5CS for smaller diesel and gas engines. These deflection indicators feature smaller transducers, which can be extended from 60mm to 536mm.

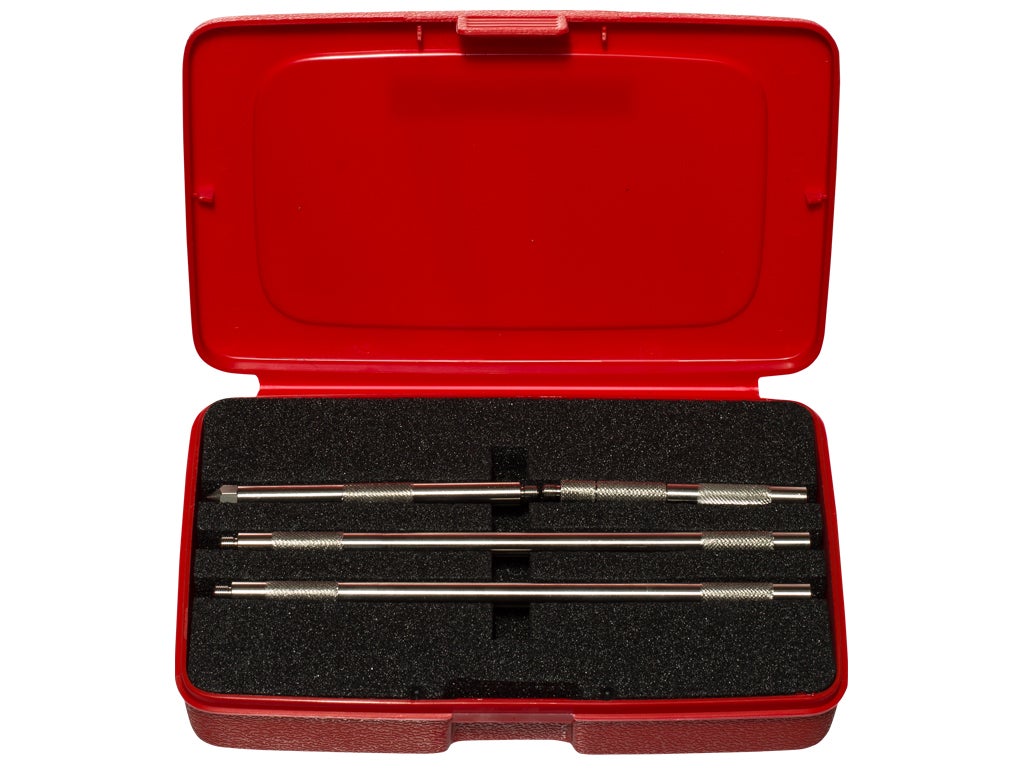

The standard Prisma DI-5 and Prisma DI-5C offer a standard 89mm transducer, and can be extended up to 565mm.

Ovality kits for cylinder wear measurement

Prisma Ovality Kit has been designed to measure cylinder-liner wear and ovality. It offers a cylinder diameter from 180mm to 600mm, and stroke up to 870mm.

Simply take five measurements at each level of the liner, as well as at the top of the cylinder, and upload this to a computer for analysis. The software can produce graphs and charts showing the cylinder's ovality over time.

Prisma Ovality Kit is compatible with Prisma deflection indicators featuring the standard 89mm transducers, but cannot be fitted with the small 60mm transducers.

Safety standards and customer support

Prisma DI-5 or Prisma DI-5C provides staff with a safe and efficient device to measure and keep track of engine status.

Reliability and safety is the Prisma Tibro's utmost concern. The company is ISO 9001:2008-certified to ensure the highest production and customer support standards.
